separation equipment

Separators are found throughout industries, primarily responsible for protecting valuable downstream capital equipment. Separators can also be used to recover material streams to be re-utilized or re-purposed. Please see our product line offering and typical installations below:

Slug Catchers

Compression

Pumping

Pipeline

Meter Stations

Refinery / Fertilizer Plant

Foam, Paraffin, Asphaltenes, etc.

Floating, Production, Storage, and Offloading (FPSO)

Cryogenic Plant (Cryo)

Cracker

Power Generation

Steam

Geothermal

Air

Hydrogen

Liquified Natural Gas (LNG)

Fuel Gas and Seal Gas Conditioning

Gas Dehydration

Super-critical CO2 (sCO2)

Enhanced Oil Recovery (EOR)

Well Head

Production and Test Separators

Mole Sieve

Membrane

Glycol Recovery

Amine

Turbo Expander / Jules-Thompson (JT)

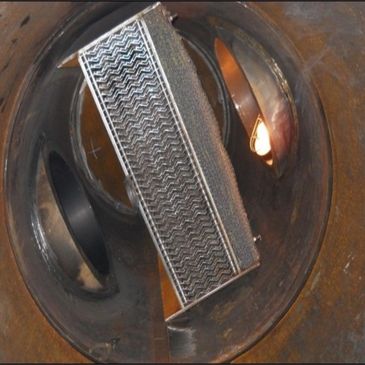

Vane Mist Extractor Separator
ASME Pressure Vessel
Scrubber Slug Catcher

Vane Separators

Centrifugal Separators

Centrifugal Separators

We utilize a double pocket vane for our vane separators and scrubbers. Vane Separators are designed to remove liquid particles from a vapor stream with high efficiency and low pressure drop. The liquid particles are captured and removed through rapid changes in direction through the vane flow profile. The liquid drops are too large and de

We utilize a double pocket vane for our vane separators and scrubbers. Vane Separators are designed to remove liquid particles from a vapor stream with high efficiency and low pressure drop. The liquid particles are captured and removed through rapid changes in direction through the vane flow profile. The liquid drops are too large and dense to make the quick zig-zag flow pattern and impact the vane blade wall, where a liquid film sheet is created, then channeled into the pockets away from the vapor flow path to be separated. These separators can be designed for either horizontal or vertical orientations. Common styles of vane separators are:


Vertical Gas Separator, VGS

Horizontal Inlet Separator, HIS

Vertical InLine Separator, VLS

Horizontal Gas Separator, HGS

Horizontal 3-Phase Separator, H3PS


See equipment photos below.

WATCH DEMO
Multicyclone Separator
ASME Pressure Vessel
Natural Gas Compressor
Slug Catcher

Centrifugal Separators

Centrifugal Separators

Centrifugal Separators

Centrifugal Separators have been used across the industry dating back to 1950s. They are a dependable solution, especially if you aren’t sure what is coming down the pipeline. We have developed multiple devices for these applications and have experienced continued success in difficult applications over our company’s history, including mul

Centrifugal Separators have been used across the industry dating back to 1950s. They are a dependable solution, especially if you aren’t sure what is coming down the pipeline. We have developed multiple devices for these applications and have experienced continued success in difficult applications over our company’s history, including multi-cyclones and mono-cyclones. Multi-cyclones are fixed devices and depending on the flow range will determine how many of these devices are installed within a separator. On the other hand, mono-cyclone separators only incorporate one centrifugal device whose size and design changes with the flow rate specified. Our mono-cyclone is our SinTrifugal Device. This device if often used in suction pulsation bottles to act as a last chance separator prior to the process entering the compressor cylinders. The removal efficiency of any centrifugal device is directly related to the radius of curvature; a smaller radius will provide higher centrifugal forces, while a larger device will impact less forceful movements onto the flow. Contrarily, you cannot simply reduce the device radius to achieve overall separation performance; there is a balance between these separation forces and re-entrainment limits. Our devices have proven results and are based on industry familiar designs. These separators can be designed for either horizontal or vertical orientations. Our SinTrifugal Separators are commonly used on suction pulsation bottles for final separation prior to compression. Popular centrifugal separator configurations are:


Vertical Multicyclone Separator, VMC

Vertical 2-Stage Multicyclone Separator, VMC2

Horizontal Axial Recycle Separator, HARS

Horizontal SinTrifugal Separator, HST

Vertical SinTrifugal Separator, VST

Vertical SinCyclonic Separator, VSS


See equipment photos below.

WATCH DEMO
Filter Separator
ASME Pressure Vessel
Natural Gas Compressor
Filter

Filter Separators

Centrifugal Separators

Filter Separators

Filter Separators are one of the more common equipment configurations found in the industry today. These are utilized when higher efficiency for separating smaller particles are required. They are commonly used on suction stages for compressors and fuel gas applications, where clean gas is necessary. The typical configuration of this equi

Filter Separators are one of the more common equipment configurations found in the industry today. These are utilized when higher efficiency for separating smaller particles are required. They are commonly used on suction stages for compressors and fuel gas applications, where clean gas is necessary. The typical configuration of this equipment incorporates filter cartridges in the inlet chamber to provide for solid separation and liquid coalescing. The downstream device is often a vane type mist extractor to remove the larger coalesced liquid droplets exiting the filters. This equipment is provided in both horizontal and vertical orientations. Configurations are:


Vertical Filter Separator, VFS

Horizontal Filter Separator, HFS


See equipment photos below.

Watch Demo
Reverse Coalescer
ASME Pressure Vessel
Quick Open Closure

Reverse-Flow Coalescers

Slug Catcher, KO, & 3-Phase

Reverse-Flow Coalescers

This is our most efficient separator series and are used where ultimate efficiency for separating sub-micron particles are required. Whereas the separators mentioned above can handle inlet liquid loading measured in gallons per minute (GPM), the elements within this separator are much more sensitive and should only be subjected to liquid

This is our most efficient separator series and are used where ultimate efficiency for separating sub-micron particles are required. Whereas the separators mentioned above can handle inlet liquid loading measured in gallons per minute (GPM), the elements within this separator are much more sensitive and should only be subjected to liquid flow rates measured in gallons per day (GPD). Please note, this liquid limit is based on contaminants reaching these elements.  As such, these separators may incorporate other high-efficiency devices within the inlet or knock-out chamber. Our preferred configuration incorporates an inlet multicyclone bundle capable of handling considerable liquid loads. Because of the flow dynamics and utmost performance requirements, these units are typically designed and offered in only vertical orientations.

Configurations are:


Vertical Reverse-Flow Coalescer, VRC


See equipment photos below.

Gas Filter
ASME Pressure Vessel
Quick Open Closure

Gas Filters

Slug Catcher, KO, & 3-Phase

Reverse-Flow Coalescers

  Filters or Dry Gas Filters are used when your primary contaminants are solid particles. These are often installed downstream of desiccant beds, driers, and similar ‘bed’ based equipment where you are capturing any potential carryover media. The equipment uses filter cartidges as described in the filter separators, but there are no mist

  Filters or Dry Gas Filters are used when your primary contaminants are solid particles. These are often installed downstream of desiccant beds, driers, and similar ‘bed’ based equipment where you are capturing any potential carryover media. The equipment uses filter cartidges as described in the filter separators, but there are no mist extraction elements. Equipment can be designed for horizontal or vertical orientations.

Configurations are:


Vertical Gas Filter, VGF

Horizontal Gas Filter, HGF


See equipment photos below.

Inlet 3-Phase Separator
Slug Catcher
ASME Pressure Vessel
Clad

Slug Catcher, KO, & 3-Phase

Slug Catcher, KO, & 3-Phase

Slug Catcher, KO, & 3-Phase

A common separator used throughout the Oil & Gas industry is a Slug Catcher. This equipment is designed to handle large intermittent liquid flow rates that occur as a result of the source of the process, liquid accumulation in low-points in pipelines, or during maintenance procedures such as pigging. These liquid rates are often times 500

A common separator used throughout the Oil & Gas industry is a Slug Catcher. This equipment is designed to handle large intermittent liquid flow rates that occur as a result of the source of the process, liquid accumulation in low-points in pipelines, or during maintenance procedures such as pigging. These liquid rates are often times 500+ GPM cases. This is not only a process separation challenge, but the forces during these events must be considered in mechanical design and integrity. Some of the configurations listed below have already been included in our high-efficient separator categories above; as such these separators are capable of handling liquid slug rates, while also performing highly efficient separation (i.e. 5-10 microns). We also provide Knock-Out Slug Catchers whose primary purpose is to provide bulk separation (i.e. 100-500 microns). Given the liquid rates and degassing retention requirements for these applications, sometimes it is more economical to design the slug catcher as a Knock Out and provide downstream separation equipment that does not have to consider the liquid slug rates. This varies depending on overall system design as well as application parameters considered; we make our clients aware of these details and consideration. These separators can be designed for either horizontal or vertical orientations. They are offered in following configurations:


Vertical Gas Separator, VGS

Horizontal Inlet Separator, HIS

Horizontal 3-Phase Separator, H3PS

Vertical 2-Stage Multicyclone Separator, VMC2

Vertical Knock-Out Separator, VKO

Horizontal Knock-Out Separator, HKO


See equipment photos below.

watch demo
Liquid Filters
Filter Bundle

Liquid Filters

Liquid / Liquid Coalescers

Liquid / Liquid Coalescers

Liquid filters operate with a similar philosophy to our gas filters where the primary contaminants are solid particles, but with a hydrocarbon or other liquid fluid being the primary phase and not natural gas or vapor. Configurations are:


Vertical Liquid Filter, VLF

Horizontal Liquid Filter, HLF

Coalescing Plate Packs

Liquid / Liquid Coalescers

Liquid / Liquid Coalescers

Liquid / Liquid Coalescers

In applications where liquid/liquid separation is critical, such as custody transfer and metering, higher efficiencies are required. In order to accomplish this, we review incorporating mechanical and filter/coalescing designs. Mechanical plate packs can provide more effective and efficient bulk oil-water separation; filter coalescers can

In applications where liquid/liquid separation is critical, such as custody transfer and metering, higher efficiencies are required. In order to accomplish this, we review incorporating mechanical and filter/coalescing designs. Mechanical plate packs can provide more effective and efficient bulk oil-water separation; filter coalescers can be applied on more precise flow applications. Configurations are:


Horizontal Inlet Separator, HIS

Horizontal 3-Phase Separator, H3PS

Horizontal Liquid Coalescer, HLC

VANE SEPARATORS

    CENTRIFUGAL SEPARATORS

      FILTER SEPARATORS

        REVERSE FLOW COALESCERS

          GAS FILTERS

            SLUG CATCHER, KO, & 3-PHASE
